AMS Trex
Device Communicator
Price on request
Improve reliability with the AMS Trex Device Communicator.
- Product description
- Extra information
- Downloads
-
Improve reliability with the AMS Trex Device Communicator.
The AMS Trex Device Communicator follows in the long line of Emerson handheld devices, while adding capabilities that adapt it to new expectations for mobile device functionality. With innovative features such as a large, full-color touchscreen display, an intuitive, task-based user interface, and power the loop technology that replaces the need for an external power supply or resistor, the AMS Trex Device Communicator provides simplicity, flexibility, and convenience.

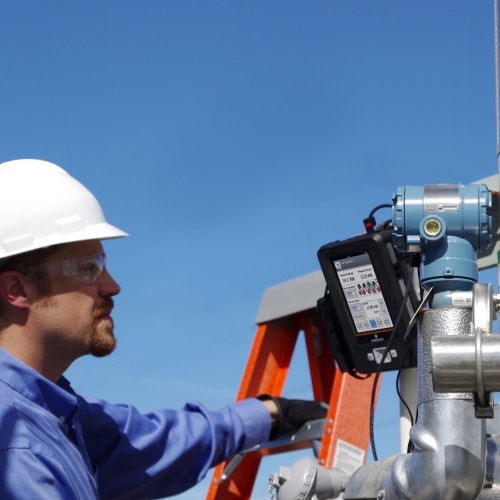

Increase productivity in the field with your Trex unit by doing more types of tasks. Easily solve complex device issues without the need for other specialized tools. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities and is safety-rated, so it can go anywhere you can go. Rely on Trex to deliver results and keep your field assets reliable.
With the AMS Trex Communicator Plus communication module, you can now power the digital valve controller directly from the downloadable ValveLink Mobile Application, removing the need for additional power sources.
This makes it is easy to configure, calibrate, and troubleshoot FIELDVIEW™DVC6200, DVC6200f, DVC2000, DVC6000, and DVC6000f digital valve controllers. The diagnostic and configuration data collected can be transferred to ValveLink Solo, ValveLink SNAP-ON™, ValveLink DTM, or ValveLink PLUG-IN for RPM® applications to be analyzed and archived.
Protect your investment in the Trex communicator with Emerson’s support options, starting with one-year Standard Support to three-year Premium Support.
The AMS Trex Device Communicator is a modular platform and comes with either Basic or Plus Modules.
Features
• Eliminate the need for specialized tools with power the loop functionality
• Quickly resolve field devices issues with advanced diagnostics
• Configure and test valves inline
• Improve efficiency with a modern, intuitive user interface
• Intrinsically safe to go anywhere you go
• Automatically synchronize field data with AMS Device Manager -
Specifications Microprocessor 800 MHz ARM Cortex A8 / NXP Memory Internal Flash 2 GB NAND and 32 GB extended flash Operating System Windows Embedded Compact 2013 RAM 512 MB DDR3 SDRAM Physical Weight Approximately 2.9 lbs (1330 grams) Display 5.7 inch (14.5 cm) color VGA resistive touchscreen 640 x 480 pixel Keypad X button – similar to a Back key 4 arrow buttons to navigate menus Checkmark- similar to an Enter key AC Adapter Battery Rechargeable Lithium- Ion Power Module Operating Time 8+ hours of typical use Charge Time 3 to 4 hours LEDs 6 LEDs. Five LEDs for indicating the progress of charging. One LED to indicate the AC adapter is charging the power module Battery Charger Options Input voltage 100-240 VAC, 50-60 Hz Cables included with US, EU, UK, and AU plugs Connections USB Micro USB Connector. USB 2.0 Remove the USB cable from the Trex unit before connecting to a device Battery Charger Barrel Round Plug Tip Wireless Wireless Approvals FCC, CE, RED and IC Approvals Certified for use in over 100 countries Wi-Fi 802.11 b/g/n Range up to 33 m NFC Active NFC Range up to 20 mm Communication Modules Device Communicator Communication Module HART terminal Enables HART device communication Connectors: Two Banana Jack Plugs Fieldbus (FF) terminal Enables FOUNDATION Fieldbus device communication Connectors: Two Banana Jack Plugs Device Communicator Plus Communication Module HART terminal Enables HART device communication Connectors: Two Banana Jack Plugs Optional Internal Resistor: 250 or 500 Ohm HART + pwr terminal Enables HART communication with the Trex unit, and provides power to one HART device in a bench setup Connectors: Two Banana Jack Plugs Includes HART power supply, resistors (167 Ohm), current control, and ammeter Current Range: 3 -22.5 mA mA terminal (external ammeter) Measures current on a 4-20 mA current loop Connectors: Two Banana Jack Plugs Current Range: Up to 22.5 mA Resolution: 0.1 mA Fieldbus (FF) terminal Enables FOUNDATION Fieldbus device communication Connectors: Two Banana Jack Plugs FF + FF pwr terminal Provides power to one FOUNDATION Fieldbus device in a bench setup Connector: One Banana Jack Plug ( Power conditioner included) Current Range: 0- 38 mA Environmental Usage -20°C to +55°C (-4°F to 131°F) For IS approval: -20°C to +50°C (-4°F to 122°F) Charge +10°C to +45°C (50°F to 113°F) Storage with power module -20°C to +50°C (-4°F to 122°F) (less than 1 month) Storage without power module -20°C to +60°C (-4 °F to 140°F) Enclosure Rating IP54 Shock The unit shall survive a 1-meter, all sides and corners drop test onto concrete Upgrade Studio Requirements Installation Windows 7 Professional Service Pack (SP1) 1 (32 and 64-bit) Windows 10 Professional 512 MB of free disk space A Windows user account with Administrator privileges Ordering Information Model Product Description TREX Base Trex Platform(1) Code Communication Module C Device Communicator communication module L Device Communicator Plus communication module(2) Code Applications H HART Application F HART + FOUNDATION Fieldbus Applications(3) Code Power Module Type P Rechargeable Li-Ion Power Module Code Product Certifications KL ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable) NA No Approval Code Radio Options W Wireless(4) 9 None Code Support(5) S1 Standard Support (1 Year)(6) S3 Standard Support (3 Year)(6) P1 Premium Support (1 Year)(7) P3 Premium Support (3 Year)(7) Code Option Codes (multi-select) S Carrying Case(8) R Radar Master App(9) W WirelessHART Provisioning App(9) Typical HART Model Number: TREX L H P KL W S3 S Typical HART/Fieldbus Model Number: TREX L F P KL W S3 S Typical HART/Fieldbus with Radar Master and WirelessHART Provisioning Model Number: TREX L F P KL W S3 SRW
(1) Includes AC Adapter, USB Cable, Lead Set with connectors, Hand Strap, Approvals and Certifications guide, and Get Started flyer. ValveLink Mobile, Calculator, and PDF Viewer applications are available at no charge once the AMS Trex unit is activated.
(2) Includes additional Lead Set with connectors.
(3) Includes FOUNDATION Fieldbus Power Plug when ordered with Device Communicator Plus communication module (L).
(4) Includes Wi-Fi, and NFC radios. Available only in countries where spectrum approval has been obtained. See www.emerson.com/trex for additional details.
(5) Includes 18 months warranty against manufacturing defects unless otherwise stated. (6) Includes technical support and software updates.
(7) Includes Standard Support and coverage against accidental damage.
(8) Leave blank for no carrying case.
(9) Only available on select AMS Trex models. -
Documents and Links Upload Date Size AMS Trex Datasheet 2025.7.30 0.9 MB
