EUR-DPI802P-M2600C
MAS2600 Calibration Kit
Price on request
The MAS2600 Pressure Calibration KIT consists of all instruments and accessories you need to make highly accurate pressure calibrations on the MAS2600 pressure sensor.
- Product description
- Extra information
- Downloads
-
The MAS2600 Pressure Calibration KIT consists of all instruments and accessories you need to make highly accurate pressure calibrations on the MAS2600 pressure sensor.

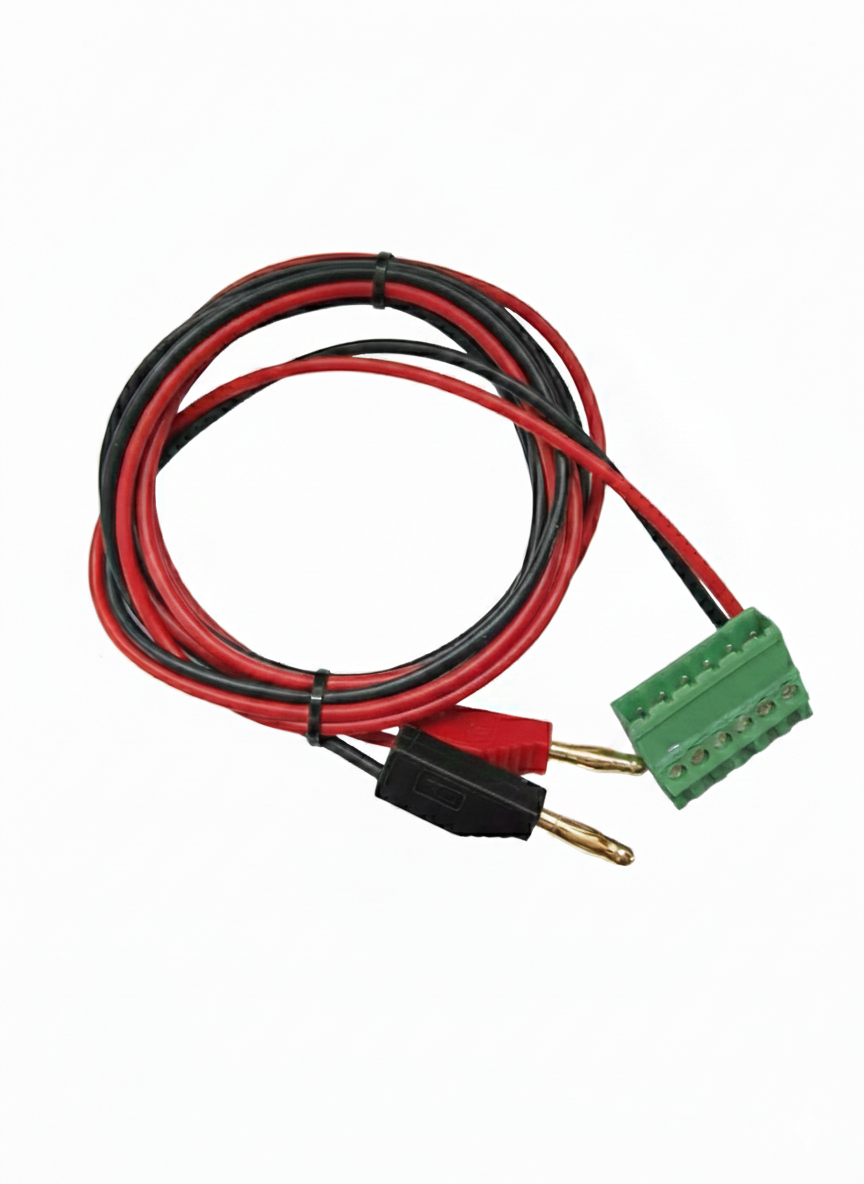

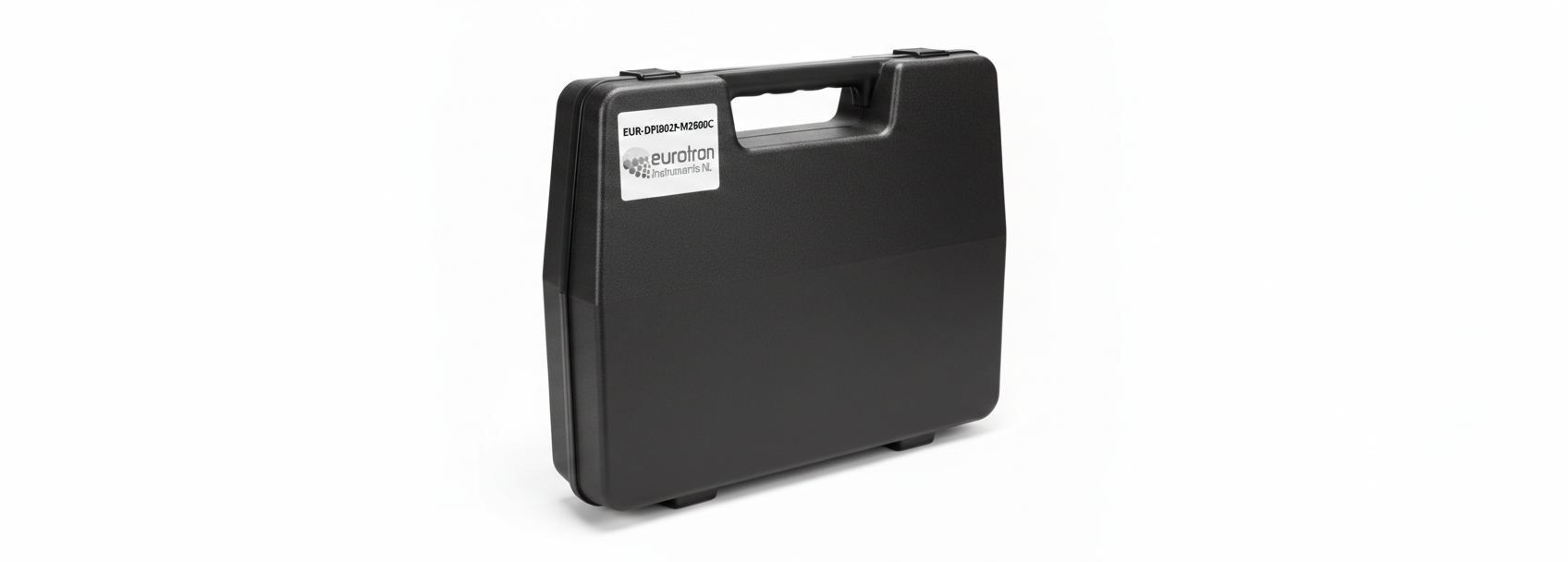

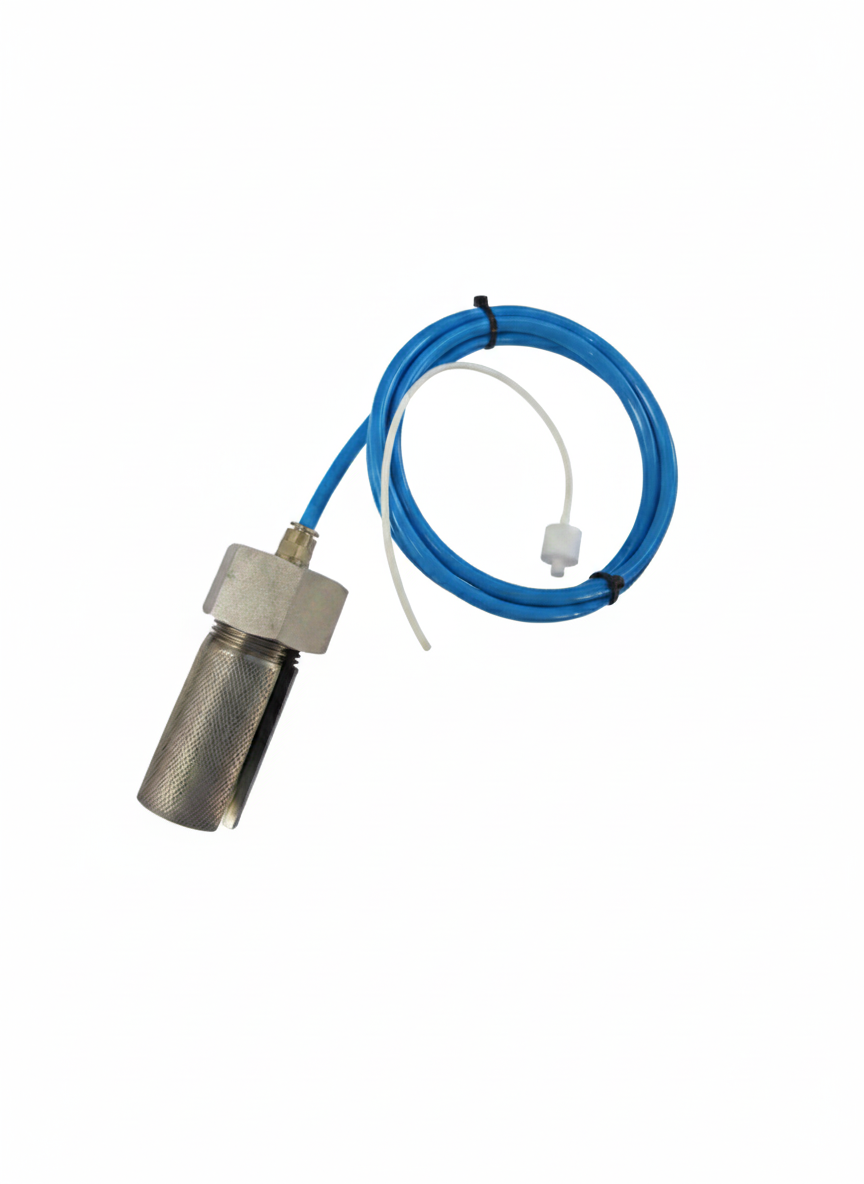

The Calibrator KIT includes the Druck DPI802P Calibrator, the Druck PV210 Hand Pump, a Carry case, a MAS2600 test cup and a MAS2600 amplifier connector.DPI802P Calibrator
Loop calibrator, an advanced, robust and easy to use hand-held instrument
• Pressure indicator
• mA measure with 24V loop power
• Switch test
• Leak test
• HART resistor
• Large dual display with back-light
• Range: -1 to 3,5 bar
• Accuracy: 0.01% FS
• Power supply: 3 x AA Alkaline batteries
• Duration: >50 hours (measurement) >10 hours (24V source at 12.5 mA)PV210 Hand Pump
The PV210 low pressure pneumatic hand pump is fully portable and easy to use. This precision unit gives pneumatic pressure and vacuum.
• Range: -0.9 to 3.0 bar
• Can generate both pneumatic overpressure and vacuum
• Generates vacuum up to 90%
• Generates pressure up to 3000 mbar
• Adjustable overpressure valve for setting the maximum outlet pressure
• Integrated fine control and pressure relief valve
Required Spare Parts G022S100
G022S101
Needs to ordered completely. Part number G022S1002 PV210-TC
Adaptor and hose set, includes:
- 3x Quick coupling Camozzi 5051 G1/8"
- 3x 5450 6/4 coupling male
- 1x Festo Coupling QS-G1/8
- 4x Bonded seals
- 2x 50cm hose (6/4) -
DPI 802 Only
Measure
Accuracy
0 to 55.000 mA
0.02% reading + 3 counts
Temperature coefficient
14°F to 50°F , 86°F to 122°F, 0.0011%FS/°F (-10°C to 10°C, 30°C to 50°C, 0.002% FS/°C)
Switch detection
Open and closed. 2 mA current
Loop power output
24 V ±10% (35 mA maximum)
HART mA loop resistor
250 ∧ (menu selection)
Electrical connectors
4 mm sockets
Pressure Range G/D G A Media *Accuracy %FS + - S P ±10 in H2O (25 mbar) √ 0.1 0.03 ±1, 3, 5, or 10 psi
(70, 200, 350, or 700 m bar)
√0.075
0.03
5 psi (350 mbar)
√0.1
N/A
-15 to 15 or 30 psi
(-1 to 1 or 2 bar)
√0.05
0.01
30 psi (2 bar)
√ 0.075
N/A
-15 to 50, 100, 150 or
300 psi (-1 to 3.5, 7 10
or 20 bar)
√0.05
0.01
100, 300 psi (7, 20 bar)
√ 0.075
N/A
500, 1000, 1500, 2000
or 3000 psi
(35, 70, 100, 135, 200 bar)
√0.05
0.01
5000 or 10,000 psi
(350 or 700 bar) Sealed gauge
√0.05
N/A
G = gauge, A = absolute, G/D = gauge/differential; calibrated referenced to atmosphere maximum line pressure 30 psi (2 bar). Stainless steel, compatibility Non-corrosive gas/fluid and Non-corrosive gas. (N/A = not available). Accuracy assumes regular zero correction.
*S_Standard Accuracy
- Total accuracy over 32°F to 122°F (0°C to 50°C), including one year stability and calibration uncertainty
*P_Premier Accuracy
- Precision over 65°F to 82°F (18°C to 28°C)
- For operation over 41°F to 113°F (5°C to 45°C): 0.014% FS for ranges above 10 psi (700 mbar) 0.075% FS for ranges below 15 psi (1 bar)
- Stability over a year: 0.01% reading ranges above 5 psi (350 mbar), 0.03% reading ranges below 10 psi (700 mbar)
- Calibration uncertainty: 50 ppm of reading
-
