PV211
PV211
Price on request
The Druck PV211 Pneumatic Hand Pump is part of the GE Druck Essential range and is a lightweight, high quality combined pressure and vacuum hand pump.
- Product description
- Extra information
- Downloads
-

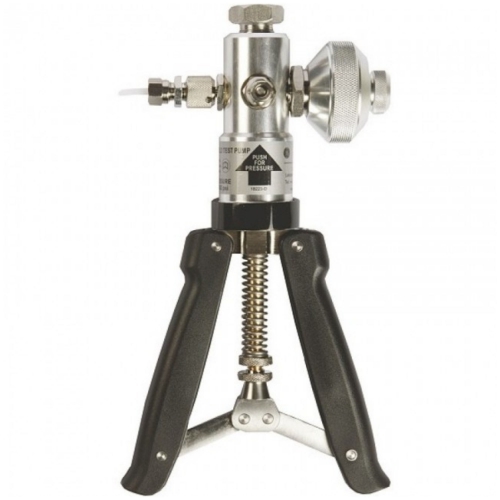

The Druck PV211 Pneumatic Hand Pump is part of the GE Druck Essential range and is a lightweight, high quality combined pressure and vacuum hand pump. It has been designed to provide maximum pneumatic pressures efficiently and effortlessly. The PV211 can be used as a portable Pressure Comparator in conjunction with various pressure indicating devices. This precision unit includes an adjustable over pressure protection system as standard.
PV211 Features and Benefits
- Dual source of pneumatic pressure and vacuum
- Pneumatic pressure in excess 40 bar (600 psi)
- Generates vacuum to 28.5 inHg
- Adjustable stroke Built-in fine adjust vernier
- Needle valve for controlled pressure release
-
Ranges
Pressure: 0 to 600 psi
Vacuum 0 to 28.5 inHg
Materials
Bright nickel plated brass, anodized aluminum, phosphor bronze (springs), Nitrile, nylon
Dimensions (l x w x d):
220 mm x 105 mm x 63 mm
Weight:
650 g
Test Kit
Complete test kits can be ordered as individual items, listed below:
PV211-P
Pneumatic Test Kit, includes:
PV211: pneumatic hand pump and manual
PV211-TC: rigid lightweight transit case with foam inserts and nylon seal kit
PV-BSP-QF
Set of Brass Nickel Plated Quick-Fit Adaptors
Quick-fit to 1/8, 1/4, 3/8 and 1/2 BSP female
Quick-fit to 1/4 and 1/8 BSP male
1/4 BSP male to 1/4 and 1/8 BSP male
Accessories
In addition, the following items can be ordered as accessories/spares:
PV-NPT-QF
Set of Brass Nickel Plated Quick-Fit BSP Adaptors
Quick-fit to 1/8, 1/4, 3/8 and 1/2 NPT female
Quick-fit to 1/4 and 1/8 NPT male
1/4 NPT male to 1/4 and 1/8 NPT male
PV211-HK
A second or replacement hose kit
Order Codes
PV211-P
PV-BSP-QF
PV-NPT-QF
PV211-HK -
Documents:
Filename Upload date Size Druck PV211 Datasheet 2024.3.25 0.3 MB Druck PV 211 Manual 2024.3.11 7.0 MB
