PV411A
Pneumatic & Hydraulic Calibration Pump
Price on request
The Druck PV411A is a high-quality field proven pressure and vacuum hand pump providing functionality, which has never been seen before in a handheld pressure source.
- Product description
- Extra information
- Downloads
-
The Druck PV411A is a high-quality field proven pressure and vacuum hand pump providing functionality, which has never been seen before in a handheld pressure source.
This remarkable product replaces four conventional hand pumps
Features
• Multi-functional ‘4 In 1’ hand pump
• Pneumatic pressure up to 600 psi (40 bar)
• Hydraulic pressure up to 10,000 psi (700 bar)
• Generates 95% vacuum
• Vacuum priming for hydraulic systems
• Excellent low pressure control
• Adjustable overpressure protection -
Pressure ranges
- Pneumatic: 0 to 600 psi
- Hydraulic: 0 to 10,000 psi
- Vacuum: 0 to 28.5 inHg
Hydraulic media
Designed for operation with distilled water (no alcohol), mineral oil equal to 40 wt.
For combined hydraulic and pneumatic operations it is recommended to use distilled water during hydraulic operation.
Materials
Stainless steel, anodized aluminum, Nitrile rubber, acrylic, PTFE, polyurethane, Delrin and nylon
Pressure connections
1/4 in NPT female
Reservoir connection
1/4 BSP female
Reservoir volume
100 cc
Optional large volume reservoir
200 cc
Total weight
2.5 lb
Dimensions (l x w x d)
10.2 in x 5.3 in x 3.7 in

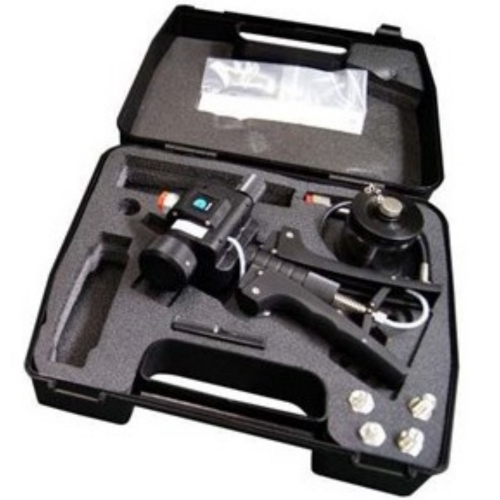

PV411A-HA Hand pump kit includes:
- Heavy duty transport case with closed foam insert
- 10,000 psi (689 bar) high pressure hose assembly, 3 ft length
- 2 pieces. 1/4 in NPT male adapters
- 1 piece 1/4 in NPT female adapter
- 1 piece 1/8 in NPT male adapter
- 1 piece 1/8 in NPT female adapter
- 1 piece 1/4 in Male to 1/8 in Female adapter
Order Codes
- PV411A hand pump only
- PV411A-HA hand pump with accessory kit
-
Documents:
File name Upload Date Size Druck PV411 Datasheet 2024.8.17 0.4 MB Druck PV411 Manual 2024.8.17 4.2 MB
